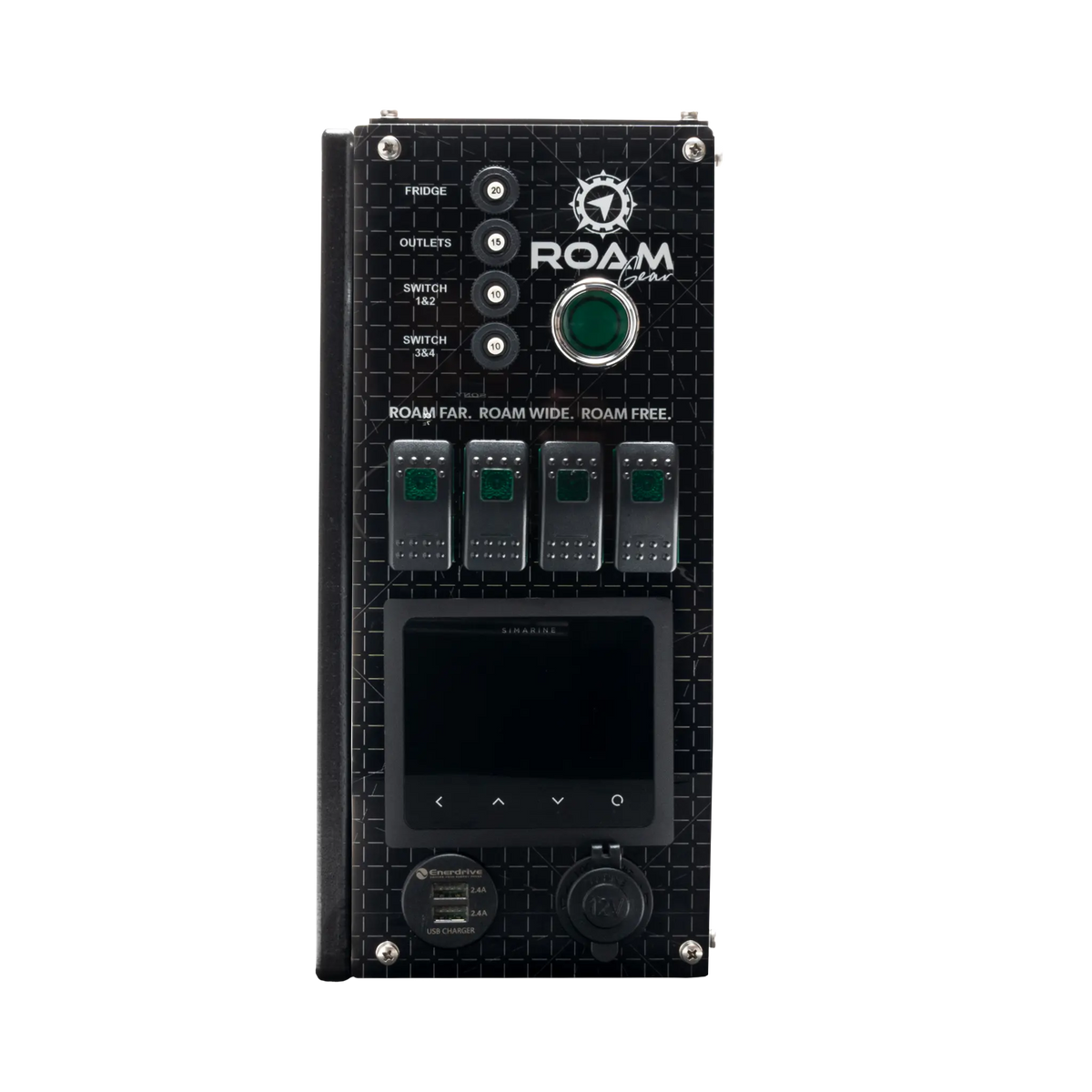

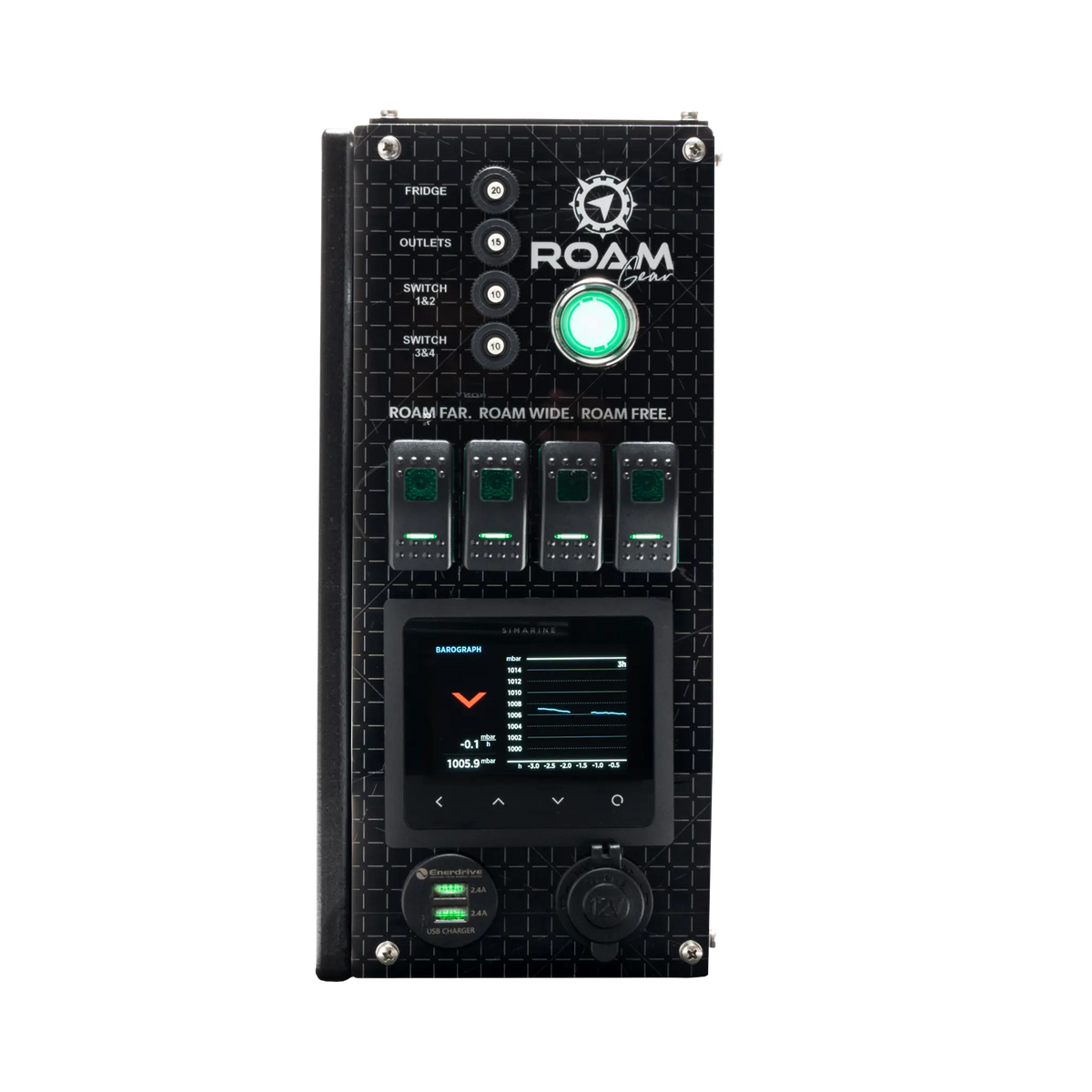

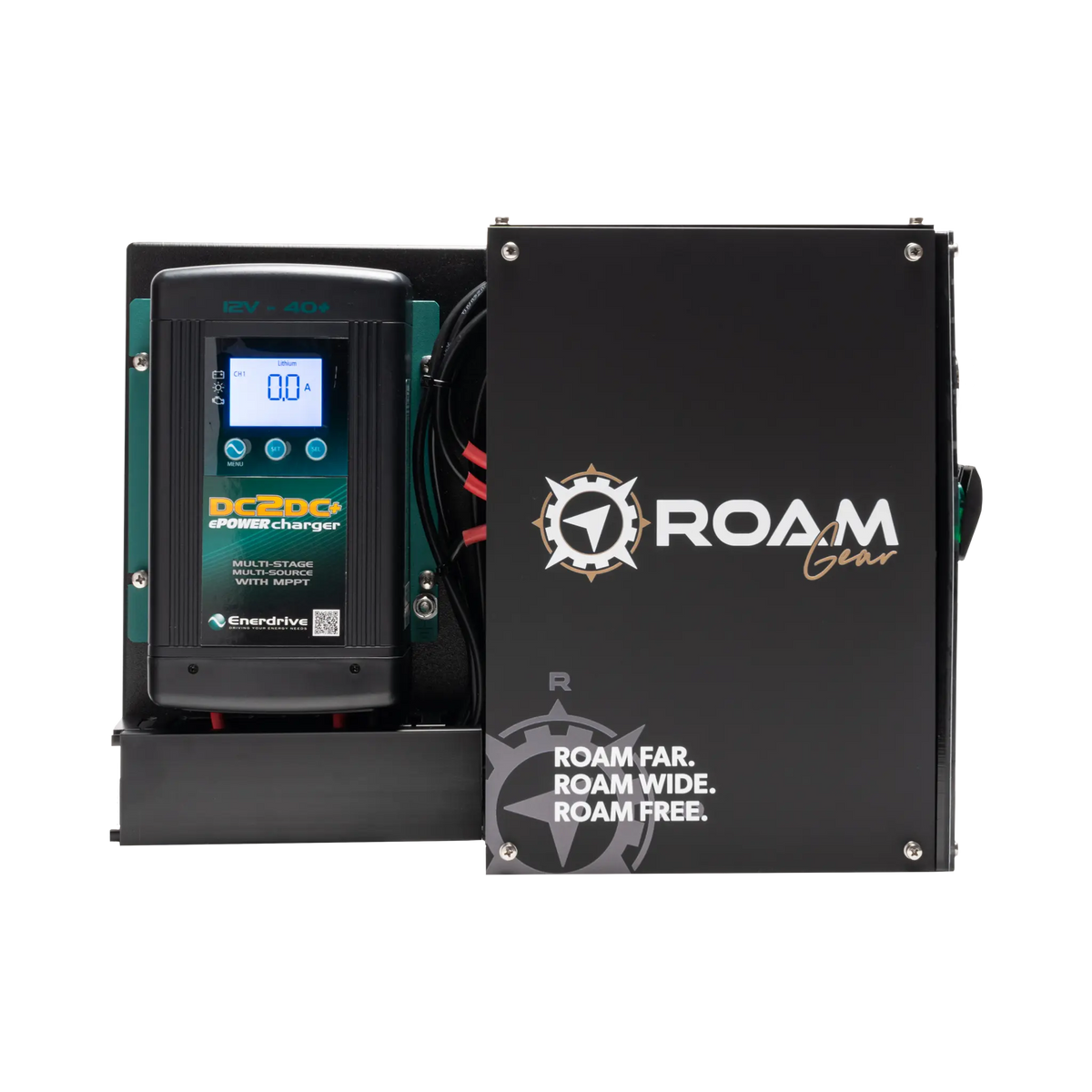

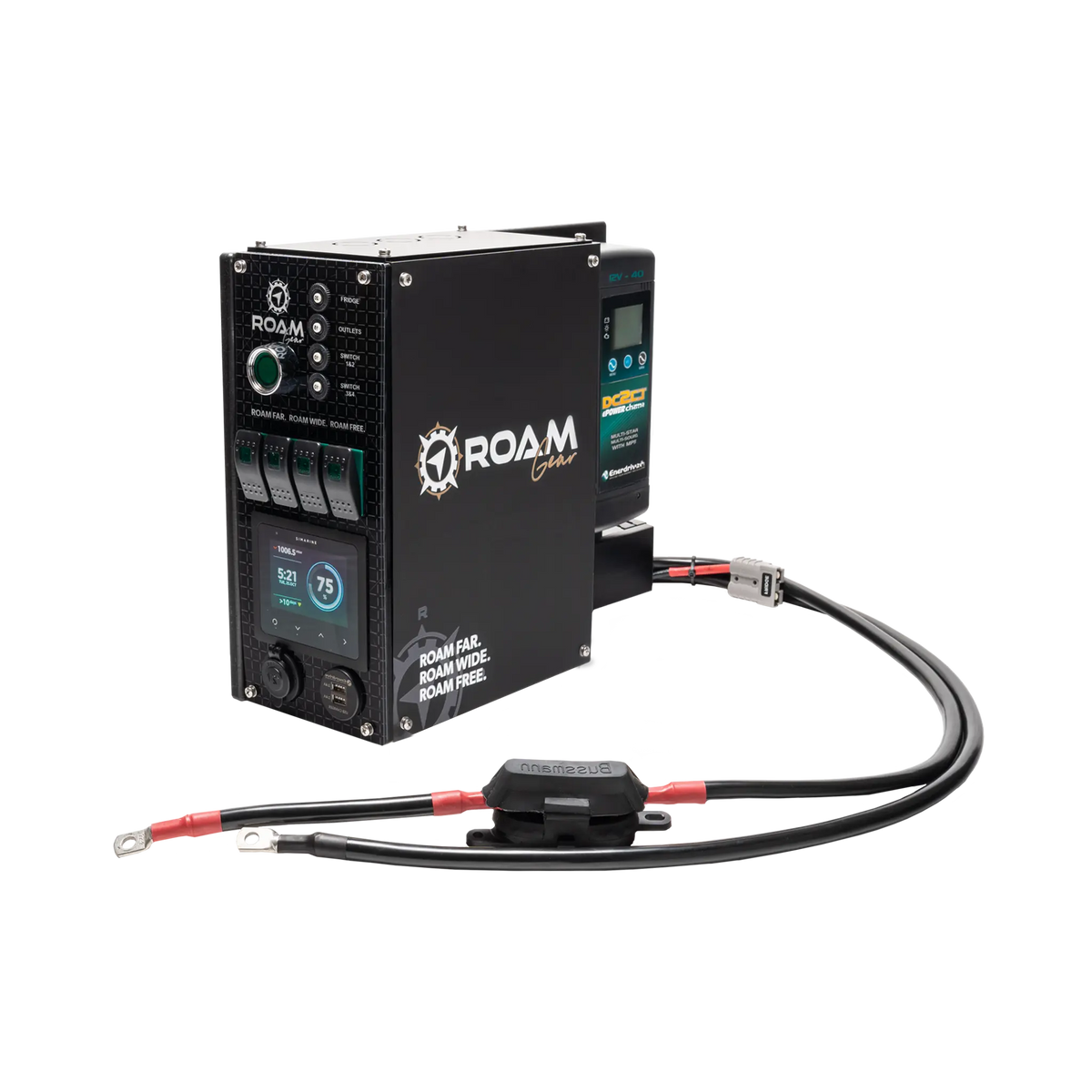

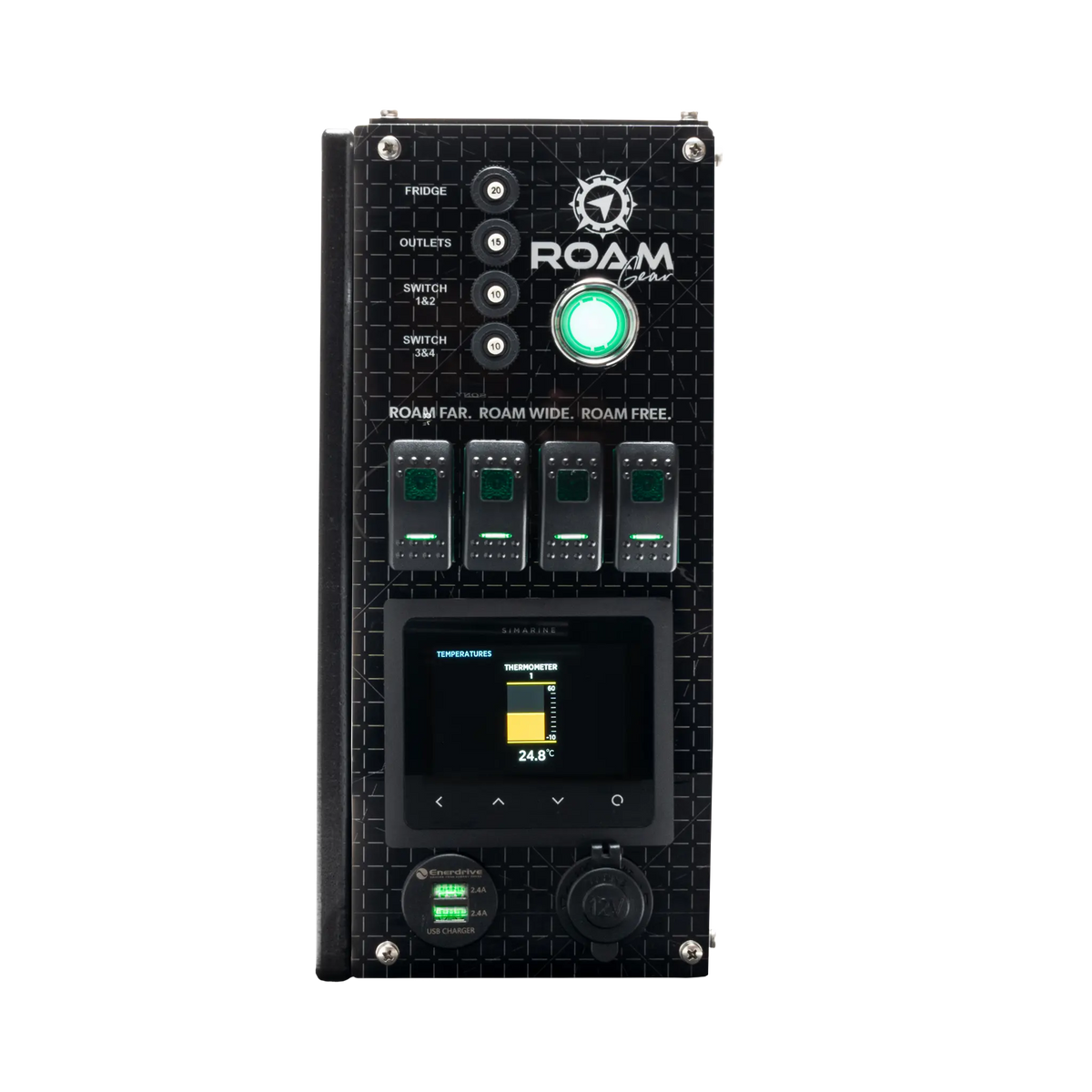

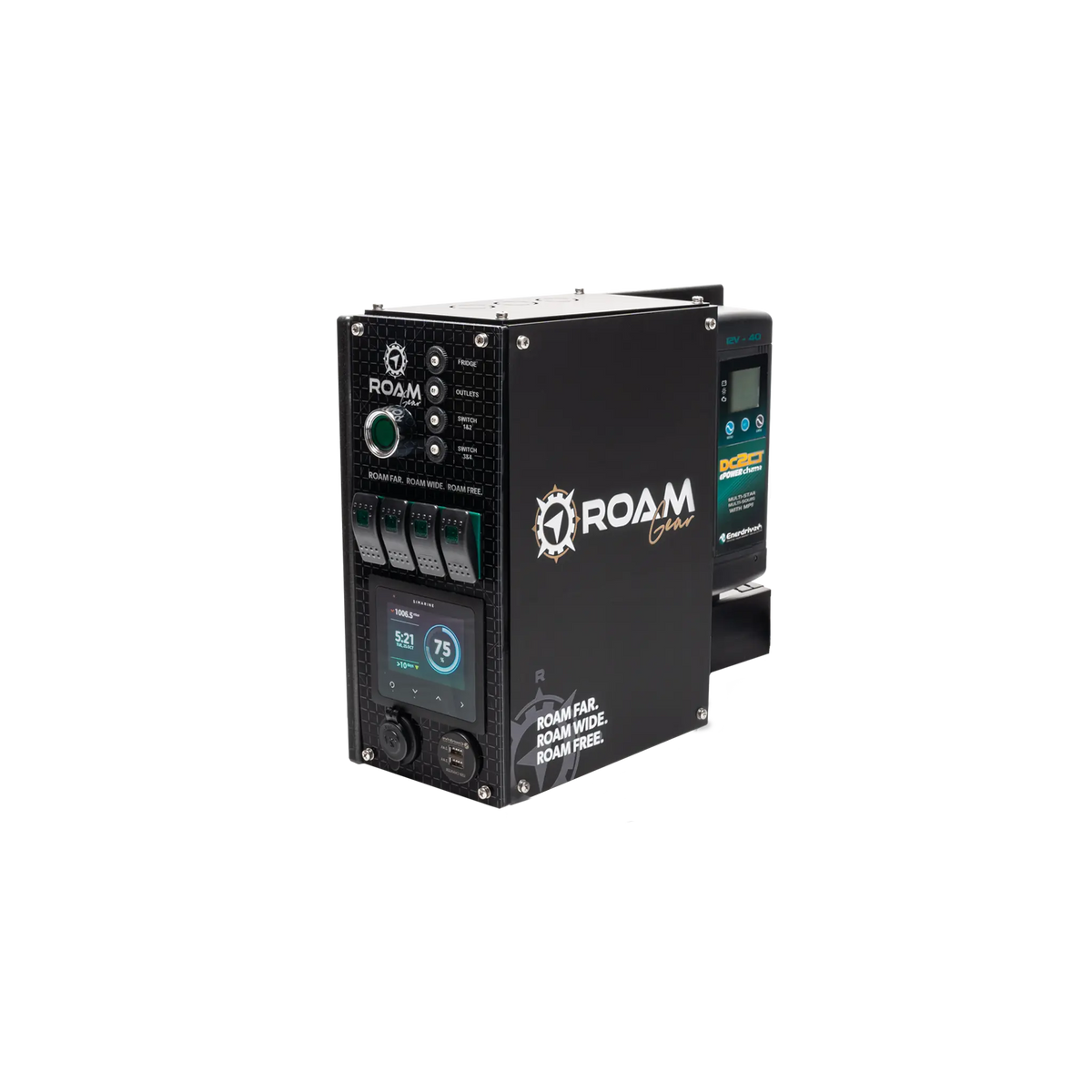

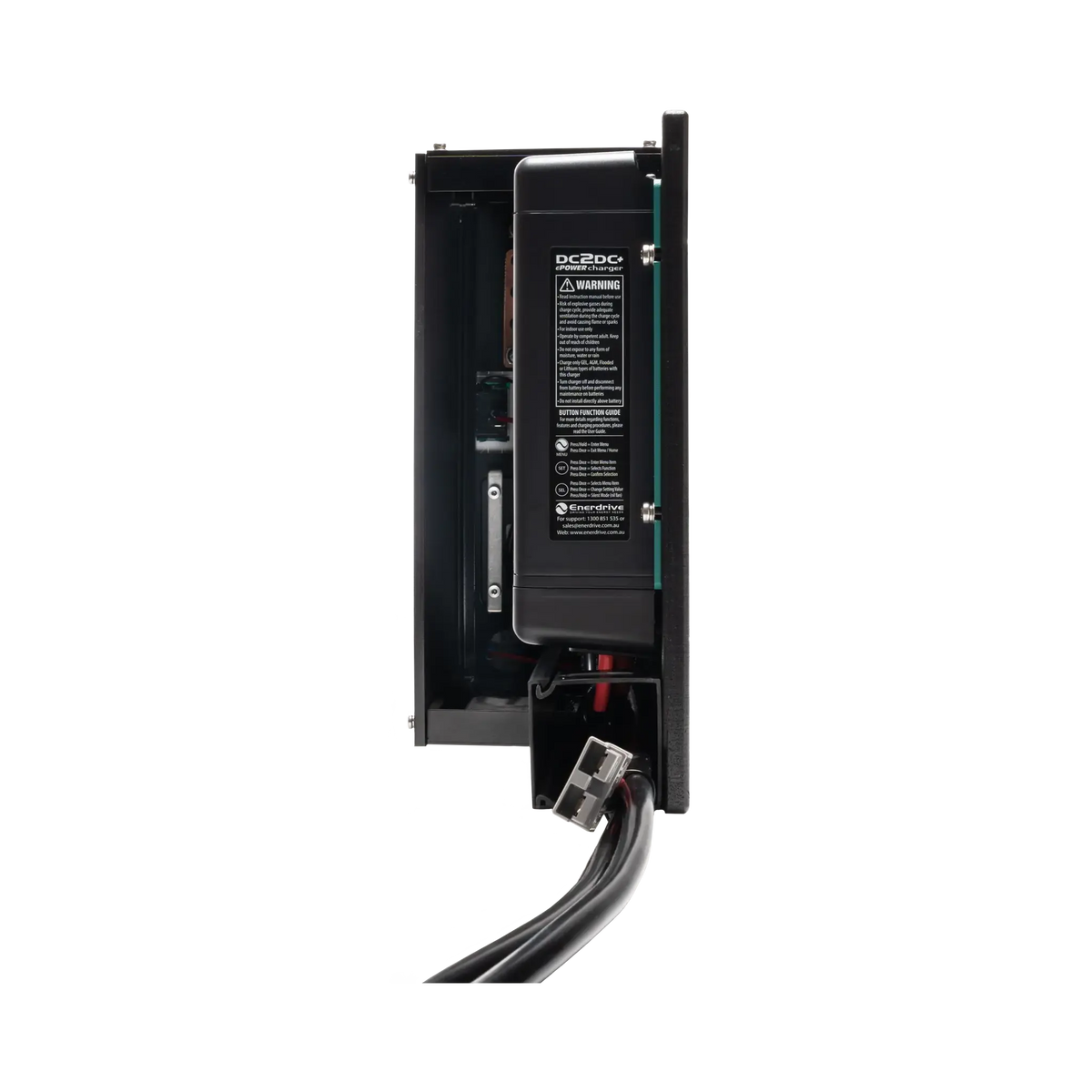

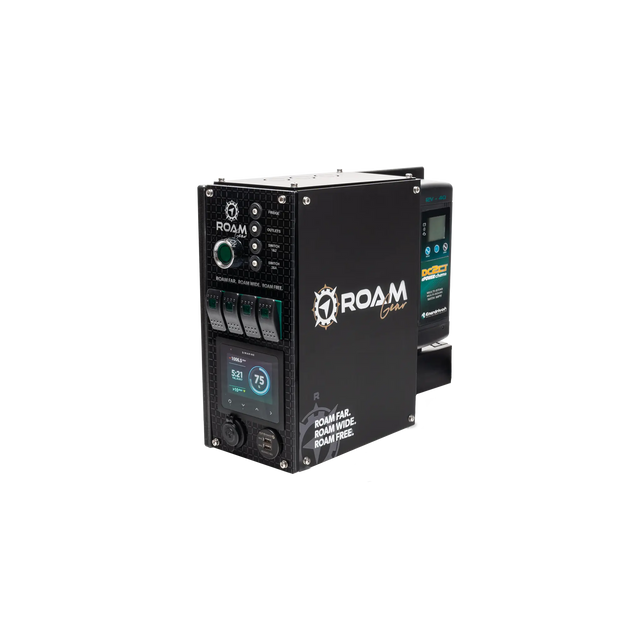

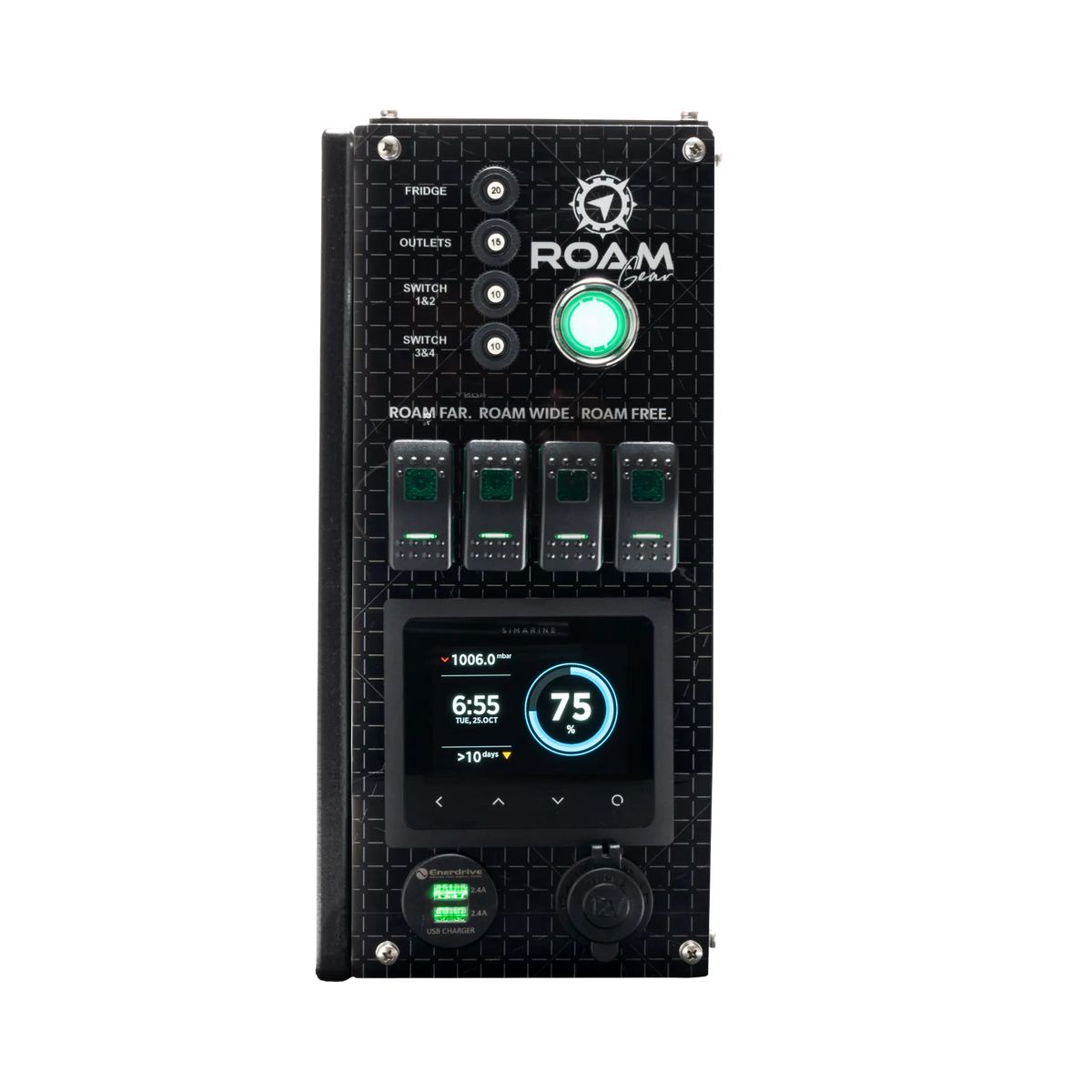

Enerdrive Passenger Side Explorer 02 Power System with Simarine (Lithium Compatible)

A battery monitor is necessary to remove the guesswork from your off-grid energy usage, allowing you to see exactly how much power you are consuming and how much remains. Without a monitor, you are essentially flying blind, which increases the risk of deep-discharging your battery bank and causing permanent damage to the cells.

By providing real-time data on current draw and state of charge, a monitor helps you decide if you can run that extra appliance or if you need to wait for the sun. This visibility allows you to protect your investment in high-value 12V deep cycle batteries and helps you confirm that your solar controllers are delivering the expected charge. It is a practical tool for anyone who values the freedom to stay in remote locations for longer periods.

A simple voltmeter measures the electrical pressure of your system, providing a basic estimate of your battery level based on its current voltage. A shunt based monitor operates differently by measuring the actual flow of current in and out of the battery bank. This allows the device to act like a precise fuel gauge, showing exactly how many amp hours you have consumed and how much capacity remains.

Voltage readings can be misleading because they fluctuate when you turn on a high draw appliance or when your solar panels are charging. This is particularly relevant for lithium chemistry, which maintains a steady voltage until the cells are nearly empty. Using a battery monitor with a shunt provides the precision required to manage lithium batteries correctly. This visibility helps you avoid the frustration of an unexpected power failure while you are off grid.

A battery shunt is a high precision resistor that is placed in your main electrical path to track the movement of power. It works by measuring the tiny voltage drop that happens as electricity passes through it, allowing the monitor to calculate the exact current flow. This component is what allows your system to act like a precision fuel gauge for your energy storage.

A shunt measures several key metrics including current in amps, voltage, and power in watts. Most importantly, it tracks cumulative amp hours, which is the total amount of energy consumed over time. This data helps you identify which appliances are using the most power and allows you to manage your campsite comforts with more confidence. It is a practical addition for any traveler who relies on solar and battery power in isolated areas.

State of Charge is the volume of energy remaining in your battery bank, expressed as a percentage of its total capacity. This measurement is more accurate than a basic voltage reading because it tracks the actual flow of electricity consumed rather than just the electrical pressure. Voltage often fluctuates based on current draw or solar input, which can result in a false understanding of how much power remains.

A precision monitor calculates the State of Charge by counting every amp hour passing through the system. This provides a clear and steady figure that is much easier to interpret, especially for lithium batteries that maintain a consistent voltage throughout their discharge cycle. Having this accurate data allows you to manage your appliances with more confidence and protects your battery bank from being drained too deeply.

Yes, many modern monitoring systems utilize Bluetooth technology to send real time system data directly to your smartphone. This allows you to check your battery status, current power consumption, and solar input through a dedicated app without needing to view a physical display. This feature is a major advantage for travelers with batteries tucked away in canopies, under floor sections, or inside storage boxes.

You can track your state of charge from the comfort of your camp chair or while you are behind the wheel. Explore our selection of battery monitors and shunts to find a wireless compatible unit, or browse our lithium batteries which often feature integrated Bluetooth monitoring.

A battery shunt must be installed on the negative line of your power system. For the monitor to track your energy usage accurately, every single electrical path must pass through the shunt before reaching the battery. This means you should have only one cable connecting your negative battery terminal to the shunt, with all other accessories and chargers connected to the other side of the device. Installing the shunt on the positive line can cause electrical shorts and will damage the monitoring equipment.

Making sure your connections are secure with the right battery cable is a critical step for a professional fit out. This setup provides the foundation for a stable system, allowing you to monitor your 12V deep cycle batteries with complete confidence.

Battery Management System BMS is an internal safety controller that protects the battery cells, while a battery monitor is an external device that tracks your power consumption. The BMS lives inside the battery housing to manage cell balancing and prevent damage from overcharging or short circuits. It acts as an automated guard that you do not typically interact with during daily use. In contrast, a battery monitor is a tool for the traveler to view real time data such as state of charge and current draw.

While the BMS keeps the battery safe, the monitor provides the visibility needed to manage your appliances and plan your recharges. Browse our Battery Monitors & Shunts to track your usage, or explore our Lithium Batteries, each with a built-in BMS.
