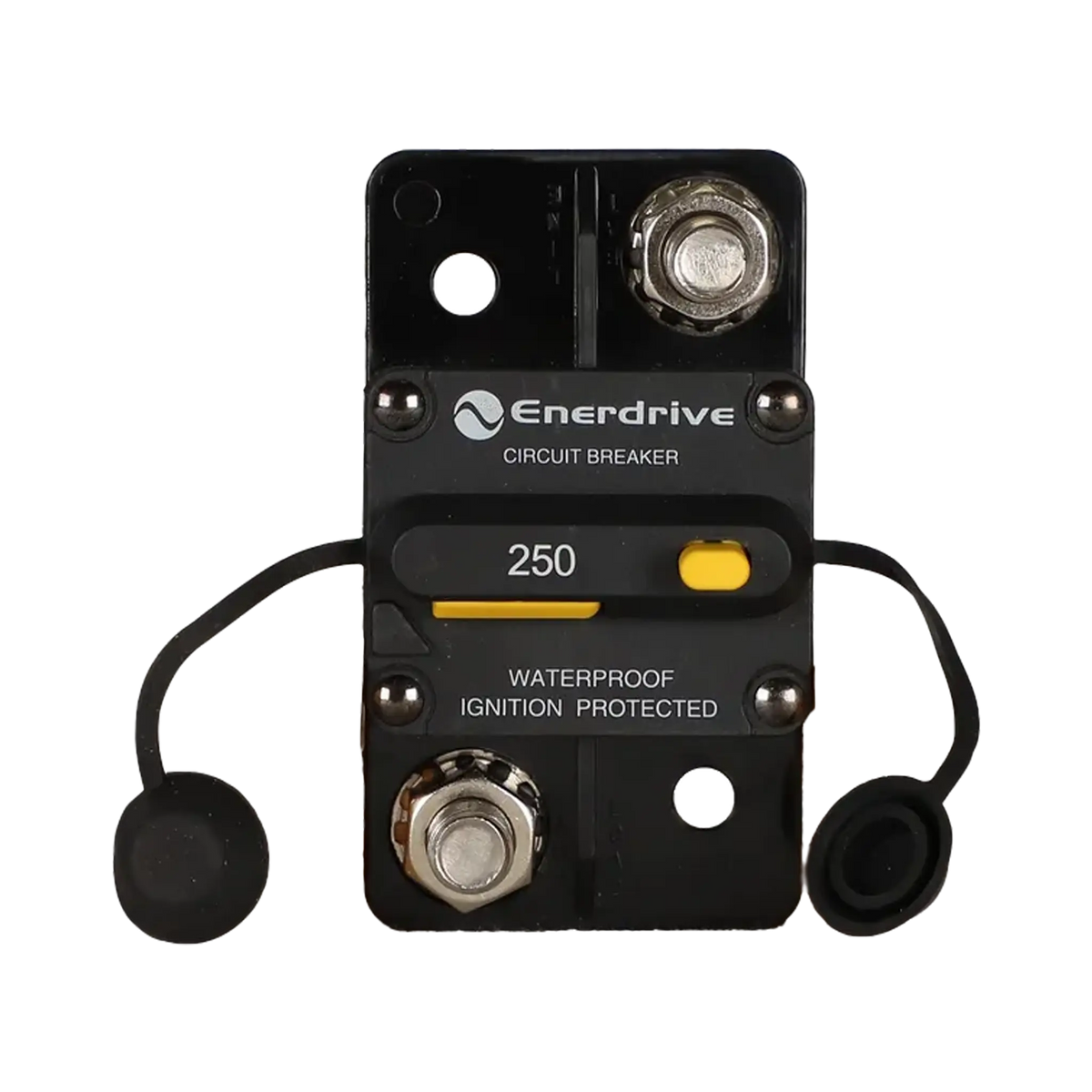

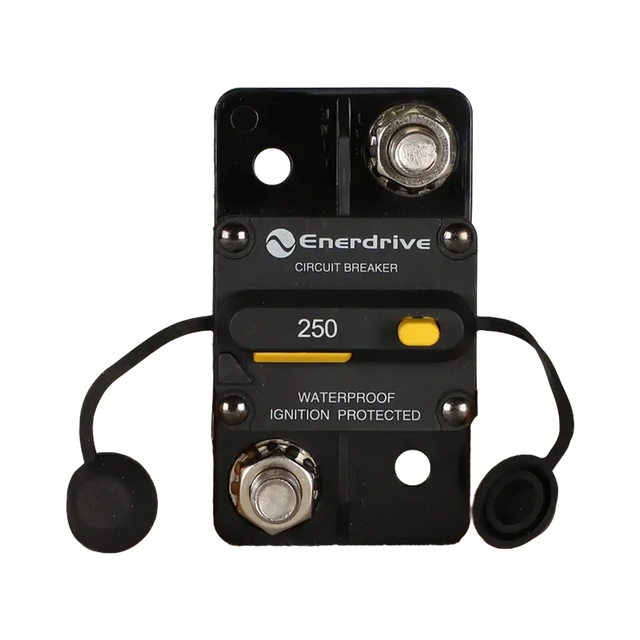

Enerdrive 250A Surface Mount Circuit Breaker with 3/8 Stud

A circuit breaker acts as a resettable safety switch that can be triggered multiple times without needing a replacement, while a fuse is a sacrificial component that melts and must be replaced once it blows. Circuit breakers are typically the preferred choice for main battery feeds and high-current runs, such as your inverter or winch, as they allow you to restore power immediately after fixing a fault.

Fuses are the standard for individual accessory circuits, such as lighting, water pumps, and USB sockets, as they respond rapidly to electrical faults. Using a fuse block is a clean and professional way to protect multiple low-draw circuits in one location. Browse our range of Circuit Breakers to find protection for your main lines, or explore our Fuses & Fuse Holders for your accessory circuits.

No, you must never use a fuse or circuit breaker rated higher than the maximum capacity of your wiring. The purpose of circuit protection is to safeguard the cable from overheating and melting during an electrical fault or overload. If the fuse rating exceeds the cable limit, the wire will potentially reach dangerous temperatures or catch fire before the circuit protection has a chance to trigger.

Always match your fuse or breaker to the smallest gauge of cable used in the circuit. This ensures that the protection will always trip safely before the cable itself sustains any damage. Browse our Battery Cable & Accessories to ensure you have the right wire for your load, or explore our full range of Circuit Breakers & Fuses to select the correct protection for your build.

We offer a comprehensive range of circuit breakers starting from 25A for smaller accessory circuits, moving up to heavy-duty 250A units for large battery banks and high-wattage inverters. Selecting the right breaker size depends on the total power draw of your system and the gauge of the cable it is protecting.

Using the correct rating is the most effective way to ensure your gear stays protected without nuisance tripping during normal operation. These resettable units are a practical choice for remote travel, as they allow you to restore power immediately after identifying and clearing a fault. They are built to handle the vibration of outback tracks, providing a stable safety foundation for your entire fit-out. Browse our selection of Circuit Breakers & Fuses to find a size that matches your power load, or explore our 12 Volt Accessories for more ways to manage your circuits.

Resettable circuit breakers are the preferred choice for main battery feeds and high-current runs because they allow you to restore power immediately after identifying and clearing an electrical fault. Unlike a standard fuse that must be discarded and replaced when it blows, a breaker acts as a reusable safety switch that clicks back into operation once you have fixed the issue.

This is a significant benefit for remote touring, as it removes the need to carry a stock of replacement fuses for your primary power lines. Fuses remain an excellent choice for individual low-draw circuits like lighting and water pumps, as they respond rapidly to short circuits and are very cost-effective to replace. Most professional builds use a combination of both to create a safe and easy-to-manage system. Browse our range of Circuit Breakers to find a resettable option for your main feed, or explore our Fuses & Fuse Holders for protecting your individual accessory runs.

Standard blade fuses are best for protecting low-current accessory circuits, such as lighting, USB ports, and internal water pumps. They are inexpensive, easy to find, and simple to replace in a centralized fuse block. High-current MIDI or ANL fuses are designed for the heavy-duty power demands of your main battery feed or high-wattage inverters.

These fuses provide the robust protection required to handle the large surge of electricity that flows through your primary cabling. Using the correct fuse type is critical for the long-term safety of your electrical system. A blade fuse is not rated to handle the sustained high amperage of a main feed and would likely fail prematurely or overheat during normal operation. Browse our range of Fuses & Fuse Holders to protect your accessories, or explore our collection of Circuit Breakers for reliable safeguarding of your high-load power paths.

A centralized fuse block is the professional choice for managing multiple accessory circuits because it groups all your protection into one accessible location. This design makes troubleshooting much faster and results in a clean, organized wiring layout behind your panels or in your canopy. If a light or pump stops working, you can quickly identify the blown fuse without searching through a mess of hidden inline holders.

Individual inline fuses are better suited for specific, isolated components that are located far from your main power hub, such as a roof-mounted solar panel or a single work light. For the bulk of your campsite gear, a fuse block offers the best balance of safety and maintenance efficiency. Browse our selection of Circuit Breakers & Fuses to find a block for your system, or explore our full range of Fuses & Fuse Holders to pick up spare protection for your kit.
