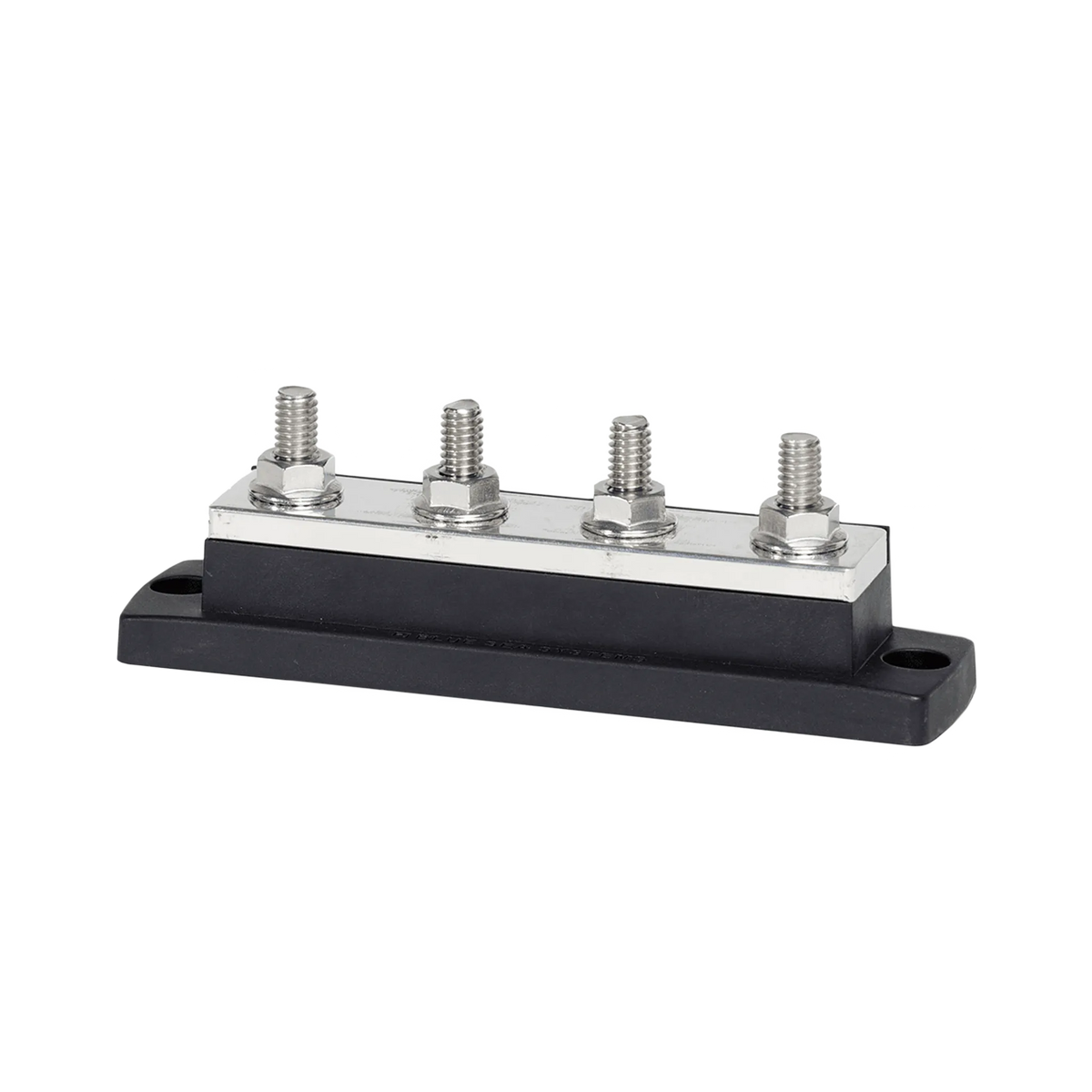

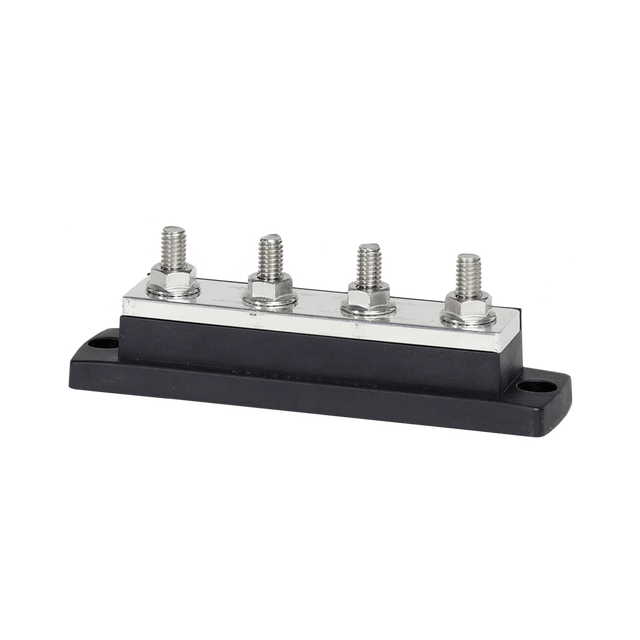

Enerdrive 250A 4-Terminal Busbar

A busbar provides a central junction point to organize multiple electrical connections. This prevents stacking too many lugs on your battery terminals, which can cause poor contact and high resistance. Using a busbar keeps your wiring tidy and makes troubleshooting much easier by separating your main power links from your accessories.

It allows you to add or remove gear without disturbing the main battery connection. This approach is a practical way to manage complex setups in 4WD canopies or caravans. Keeping your terminals clear of clutter helps maintain a consistent flow of power and reduces the risk of loose wires.

Explore our Power Distribution Boxes for more ways to manage your canopy wiring and auxiliary circuits.

Using both a positive and a negative busbar is the best way to maintain a professional setup. A negative busbar is particularly useful for systems using a battery monitor. It provides a single point to collect all negative return wires before they pass through the shunt to reach the battery terminal.

A positive busbar distributes power to multiple fuse blocks or high draw components without cluttering the battery posts. If you are running solar, DC to DC charging, and multiple lighting circuits, these junction points become a practical necessity for safe and organized wiring. This approach reduces the risk of loose connections and simplifies future troubleshooting.

Explore our Battery Monitors to see how a negative busbar helps provide accurate system data.

A 2000W inverter pulling from a 12V system requires a busbar with a minimum continuous rating of 250 amps. To find this number, you divide the maximum wattage by the lowest system voltage and add a safety margin to account for peak startup loads.

Using a busbar that is undersized will lead to significant heat buildup and a drop in voltage, which can cause your inverter to shut down. It is always a smart move to choose a higher rated busbar than your calculated draw to provide a cooler and safer connection point for your main power links. This allows your high draw appliances to run smoothly during your off grid stay without stressing your electrical components.

Explore our range of 12V Pure Sinewave Inverters to find a match for your setup.

Yes, you must install a high current fuse or circuit breaker between the positive battery terminal and the busbar. This primary safety link protects the main cable and the junction point from short circuits and overloads.

Placing the fuse as close to the battery as possible prevents the cable from becoming a fire hazard if it rubs against the vehicle chassis. The fuse rating should match the maximum current carrying capacity of your cable or the busbar. This simple step keeps your entire 12V system protected and allows you to add multiple accessories with the knowledge that your main power supply is safe.
