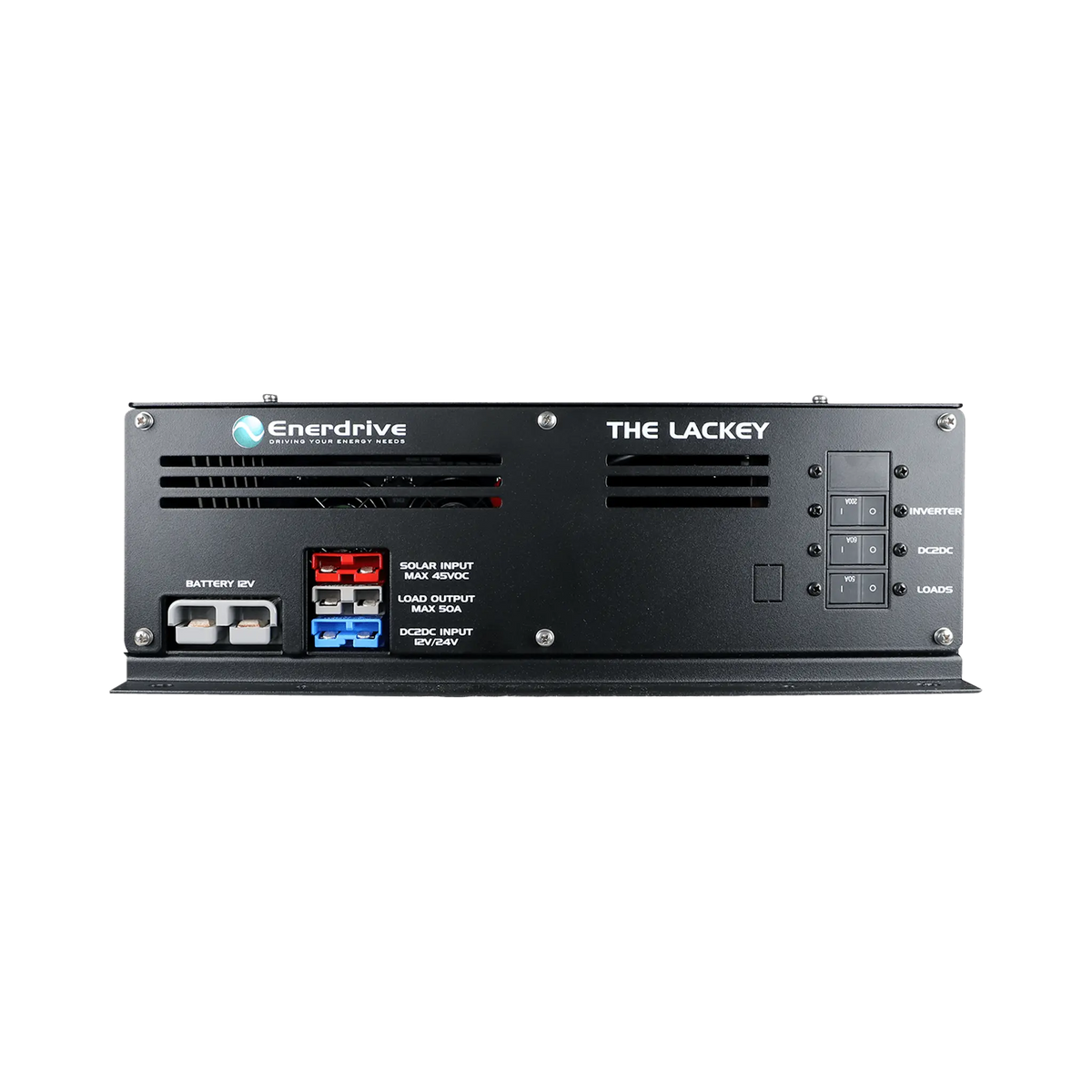

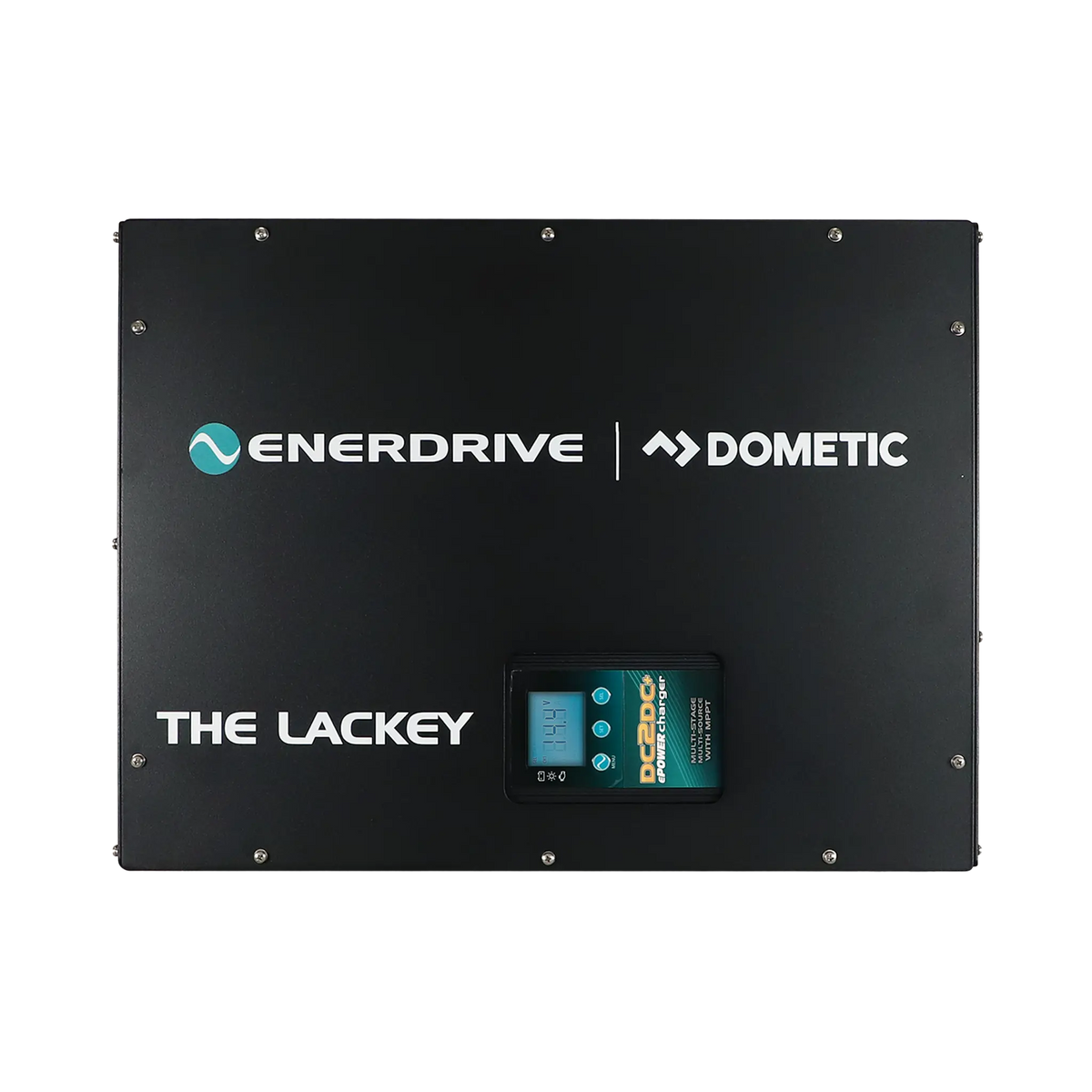

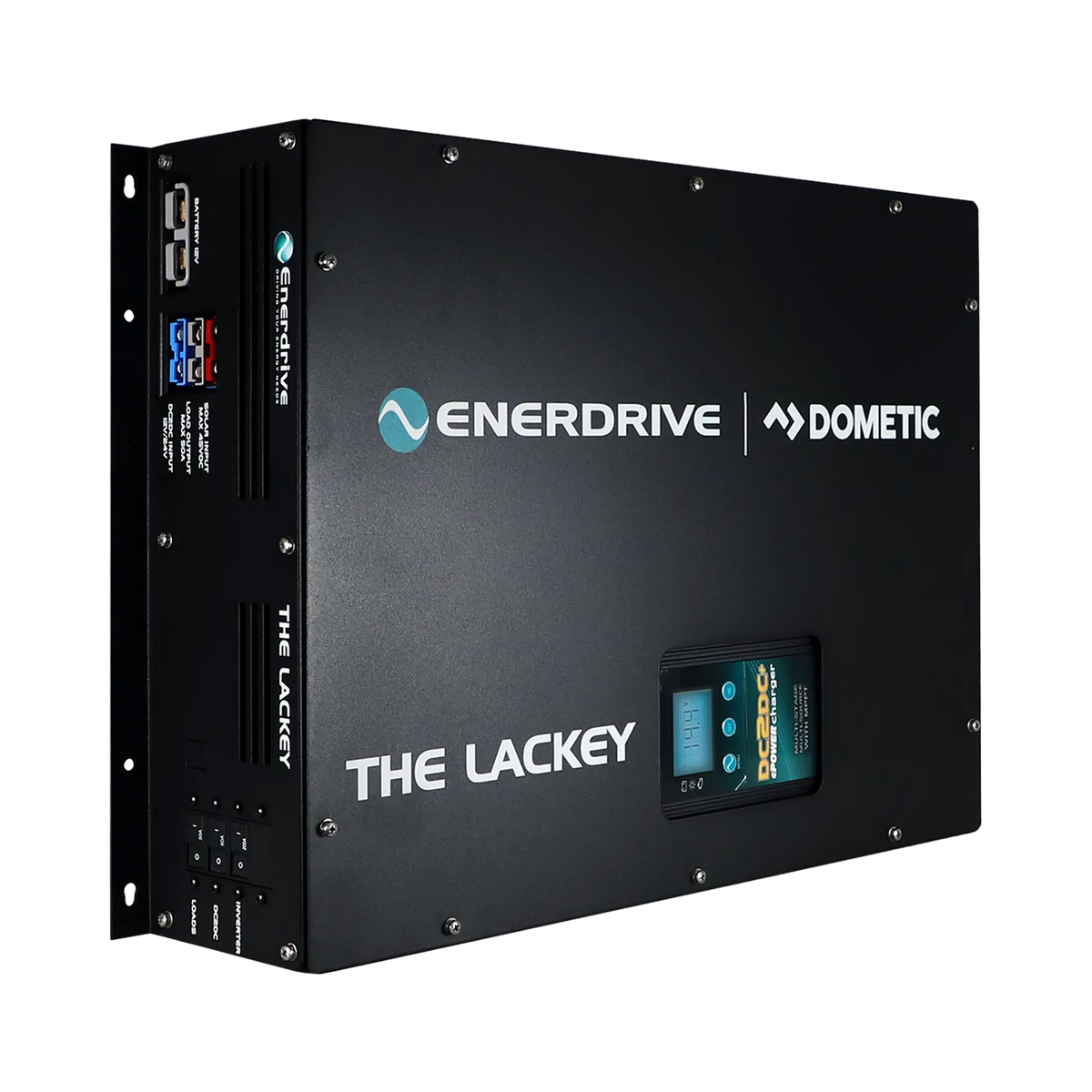

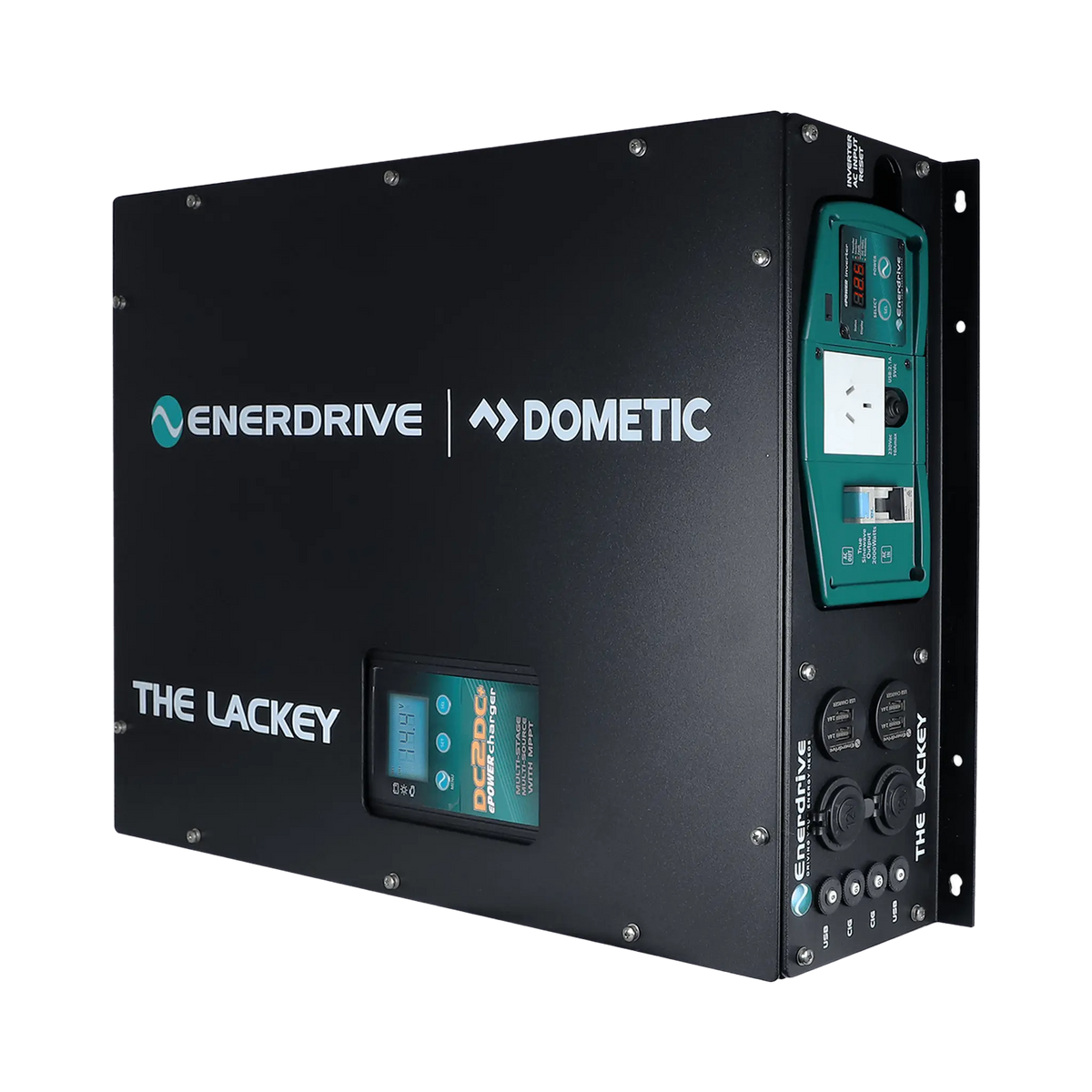

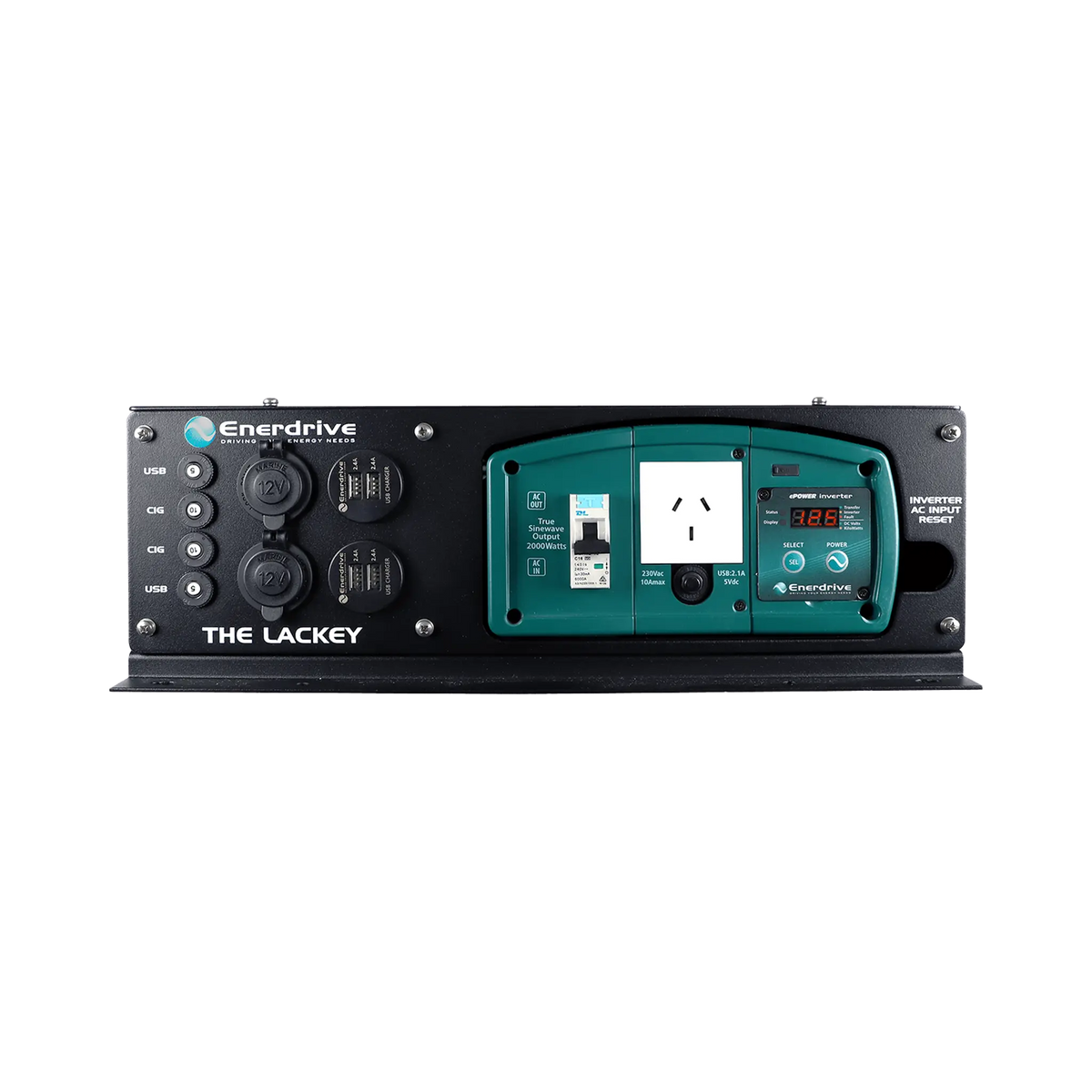

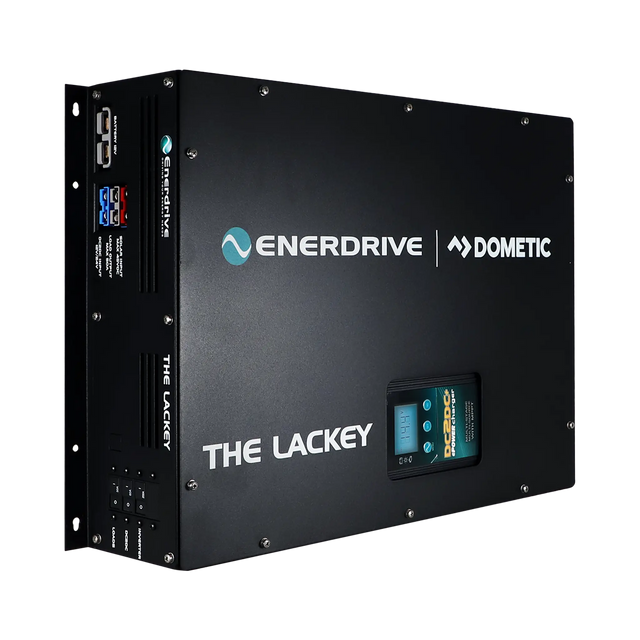

Enerdrive Lackey Power System with ePOWER 40A DCDC Charger & 2000W Inverter (Lithium Compatible)

A pre built canopy control box is generally better for travelers wanting a professional finish and a faster installation. These units arrive with pre wired internal links and fused circuits, which removes much of the complexity and risk of a manual build. A custom distribution board is better if you have a unique space that requires a specific layout or component mix.

Choosing a pre wired unit provides a tested foundation that performs well on rough outback tracks. It allows you to focus on connecting your accessories rather than wrestling with internal busbars and mounting individual sockets. This approach results in a cleaner setup that is easier to troubleshoot if a fault occurs later.

Explore our Switches & Switch Panels to see different control layouts for your build.

The maximum amperage limit for a distribution box usually ranges between 50 and 100 amps for the total board. While individual circuits for camp lights or USB ports are capped much lower, the main input must handle the combined load of all your gear. Exceeding this limit can cause internal components to melt or fail.

Always check the rating of the internal busbar and wiring before adding high draw accessories like a large inverter or air compressor. Using a box with a higher rating than your current needs provides a safe buffer and allows you to expand your setup in the future. This keeps your power distribution stable during heavy use at camp.

Find high current protection in our Circuit Breakers & Fuses collection.

Most 12V distribution boxes include pre fused individual circuits, but you still need a main circuit breaker or master fuse near your battery. The fuses inside the box only protect the specific leads running to your accessories like a fridge or water pump. A larger fuse at the power source protects the main cable running to the box itself.

This setup provides multiple layers of safety and prevents a wiring short from becoming a fire hazard. If the main cable gets damaged while you are driving, the master breaker will trip and cut power immediately. Having fuses in both locations helps you isolate faults quickly without losing power to every device in your rig.

Match your wiring to the load with our Battery Cable or browse our Circuit Breakers & Fuses for master protection.

Most distribution boxes are weather resistant and designed for mounting inside a protected canopy, van, or storage compartment. While they can handle dust and light splashes, they are rarely fully waterproof and should not be mounted in an exposed location where they face direct rain or high pressure washing.

Keeping the box in a dry area protects the internal fuses and electrical contacts from corrosion. If you are mounting your distribution hub in an open ute tray, placing it inside a secondary weatherproof housing is a smart move. This helps maintain the function of your electrical system and prevents short circuits during long term travel in humid or coastal environments.
