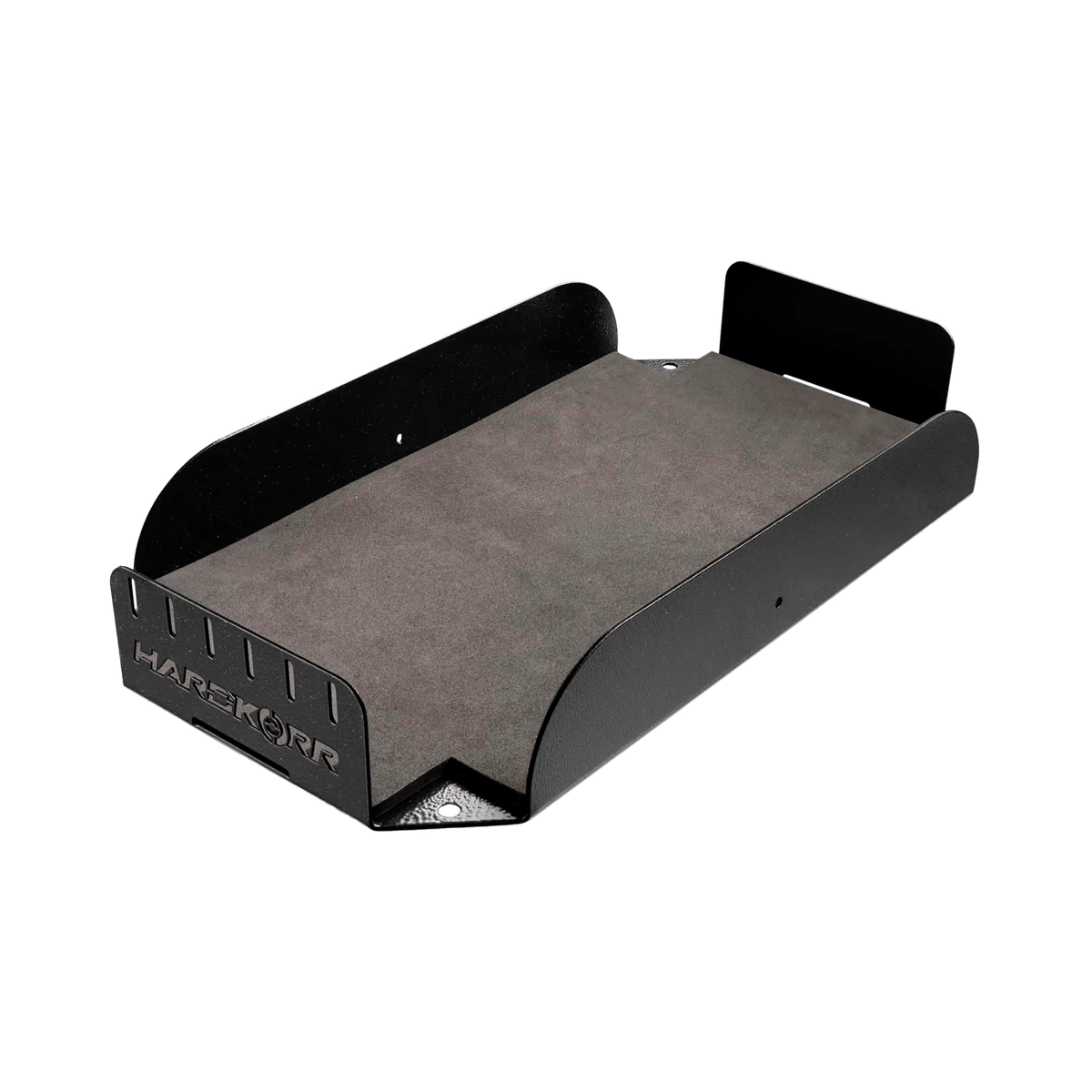

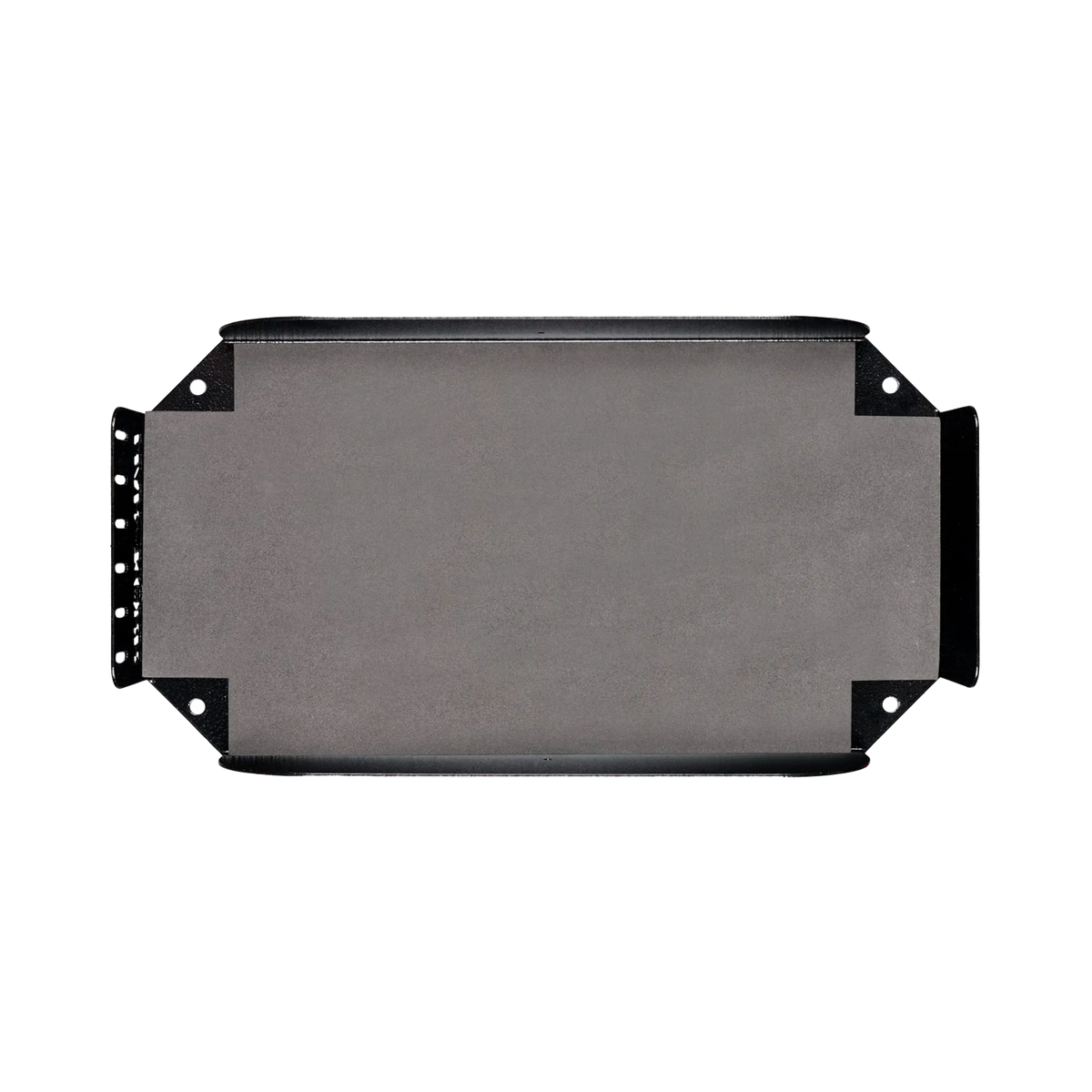

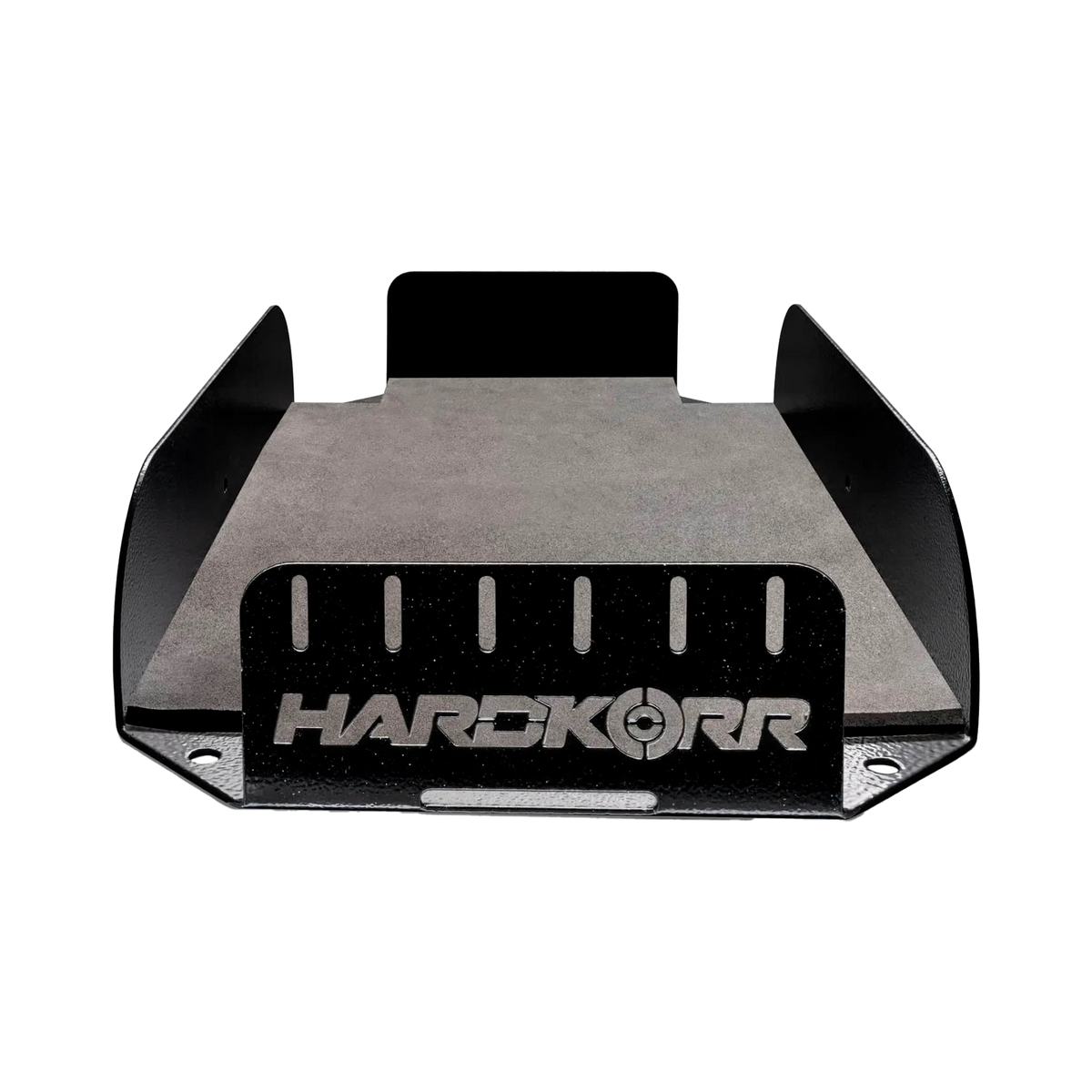

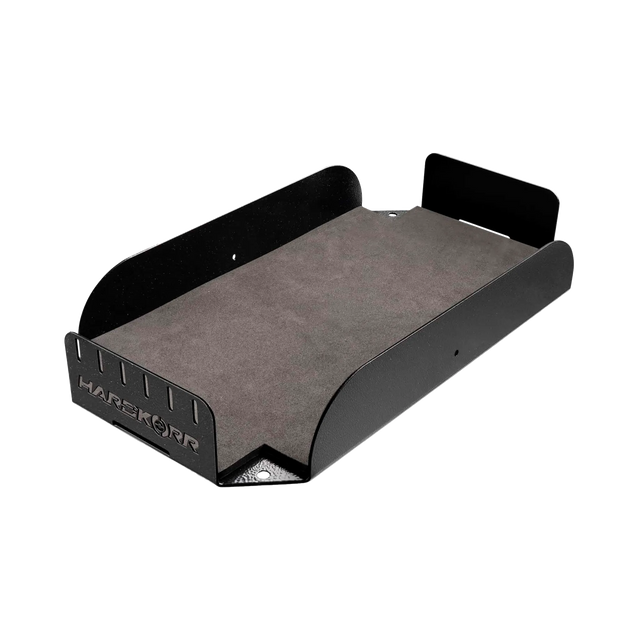

Hardkorr 200Ah Lithium Battery Tray with Clamps

Vehicle specific trays are designed to bolt into the factory mounting points found in the engine bay or tub of a particular 4WD. Universal trays feature a flat base with various pre drilled holes, allowing them to be mounted in custom locations such as inside a canopy, a caravan storage box, or a camper trailer.

Choosing a tray that matches your vehicle saves time during the fit out because it clears existing engine components and requires no custom fabrication. Universal trays offer more flexibility for those building a bespoke system where space is at a premium. Both styles provide a solid foundation for your auxiliary storage by keeping the battery fixed and secure.

Check out our Dual Battery Systems to see how these trays fit your build, or see our DCDC Chargers to manage your secondary power.

A standard twelve inch tray is the most common size for a 100Ah lead acid or AGM battery. Most of these units follow a standard case size that fits neatly into a tray measuring approximately 300mm to 330mm in length.

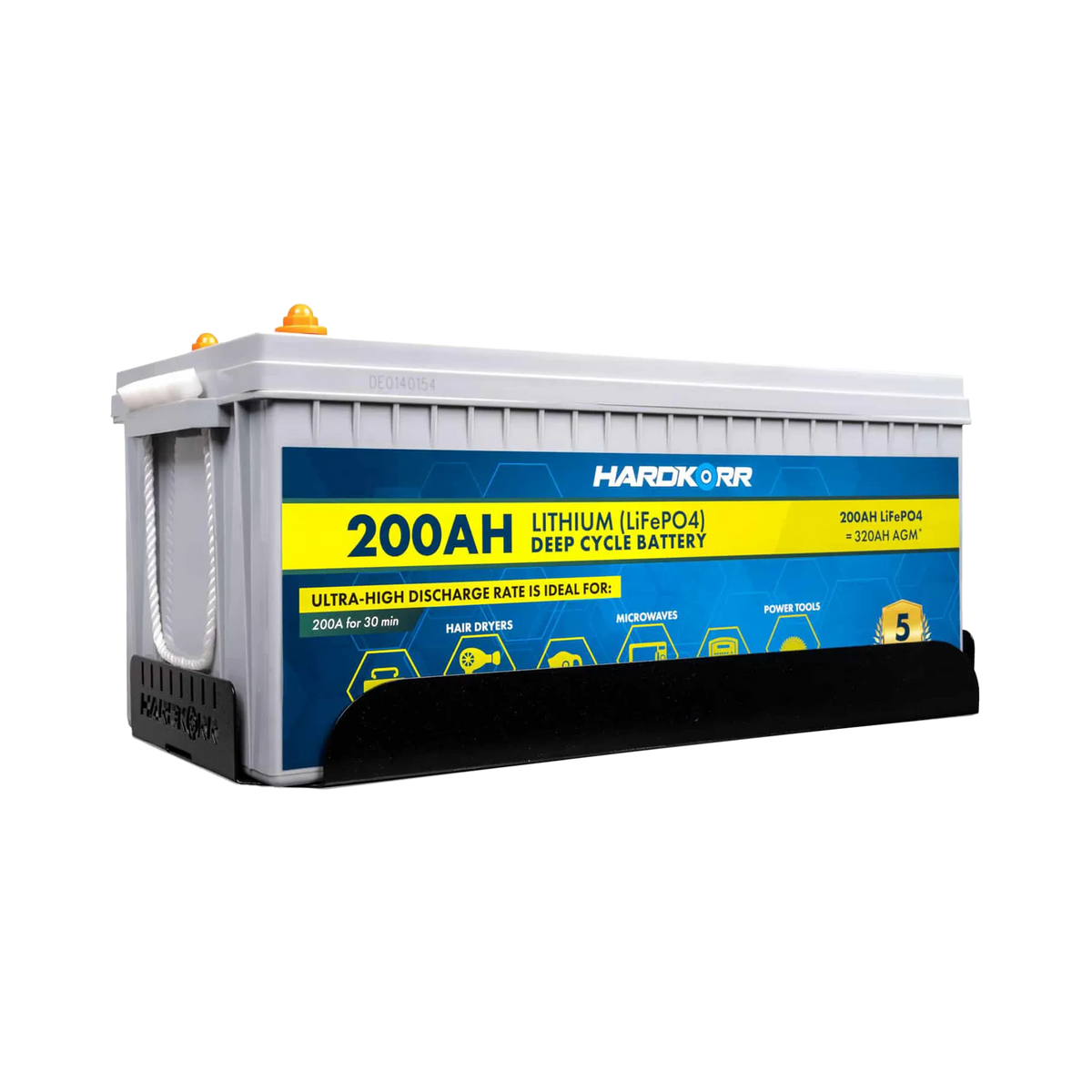

If you are using a lithium battery, these are often more compact than traditional options and will fit easily with extra room for wiring. Always double check the physical length and width of your specific battery before choosing a tray, as some slimline or high capacity models may require a different footprint. Keeping the battery fixed in a correctly sized tray prevents movement that can damage terminals or wiring when traveling over corrugated outback tracks.

Match your tray to the right power source by exploring our AGM Deep Cycle Batteries or browse our lightweight Lithium Batteries.

The most secure way to mount a battery tray in an aluminium canopy is by bolting it directly to the structural frame or the canopy floor using large load spreading washers. Because aluminium can flex more than steel, using a backing plate beneath the floor helps distribute the weight of the battery and prevents the metal from cracking over time due to vibration.

It is best to position the tray as low as possible and away from high heat sources like the vehicle exhaust or direct engine bay vents. Once the tray is bolted in place, ensure the battery is locked down with heavy duty straps to prevent any movement while navigating rough corrugated tracks. This professional approach keeps your power source stable and protects your canopy from structural damage during long outback hauls.

Explore our Power Distribution Boxes to find a central hub for organizing your canopy wiring once your battery is securely mounted.

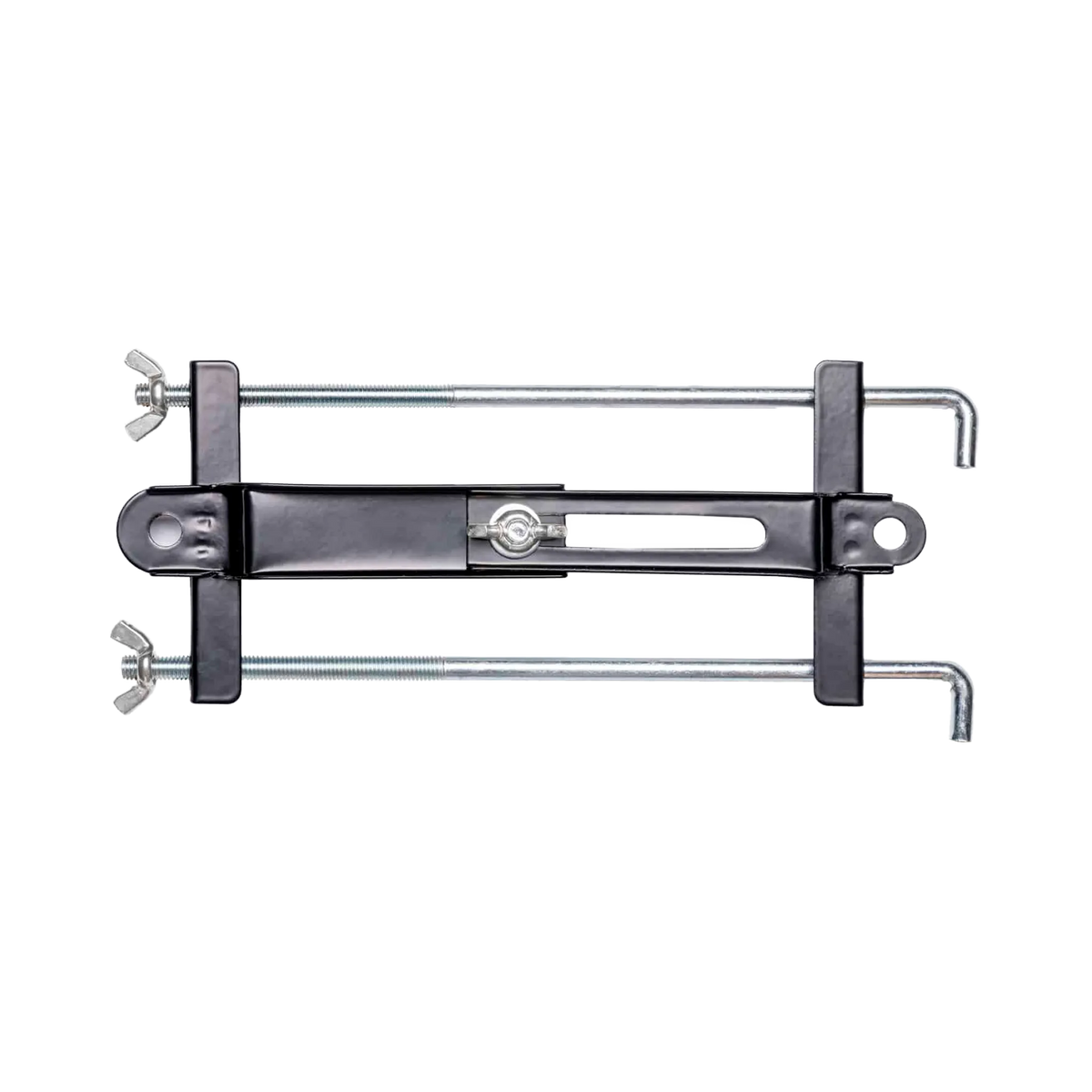

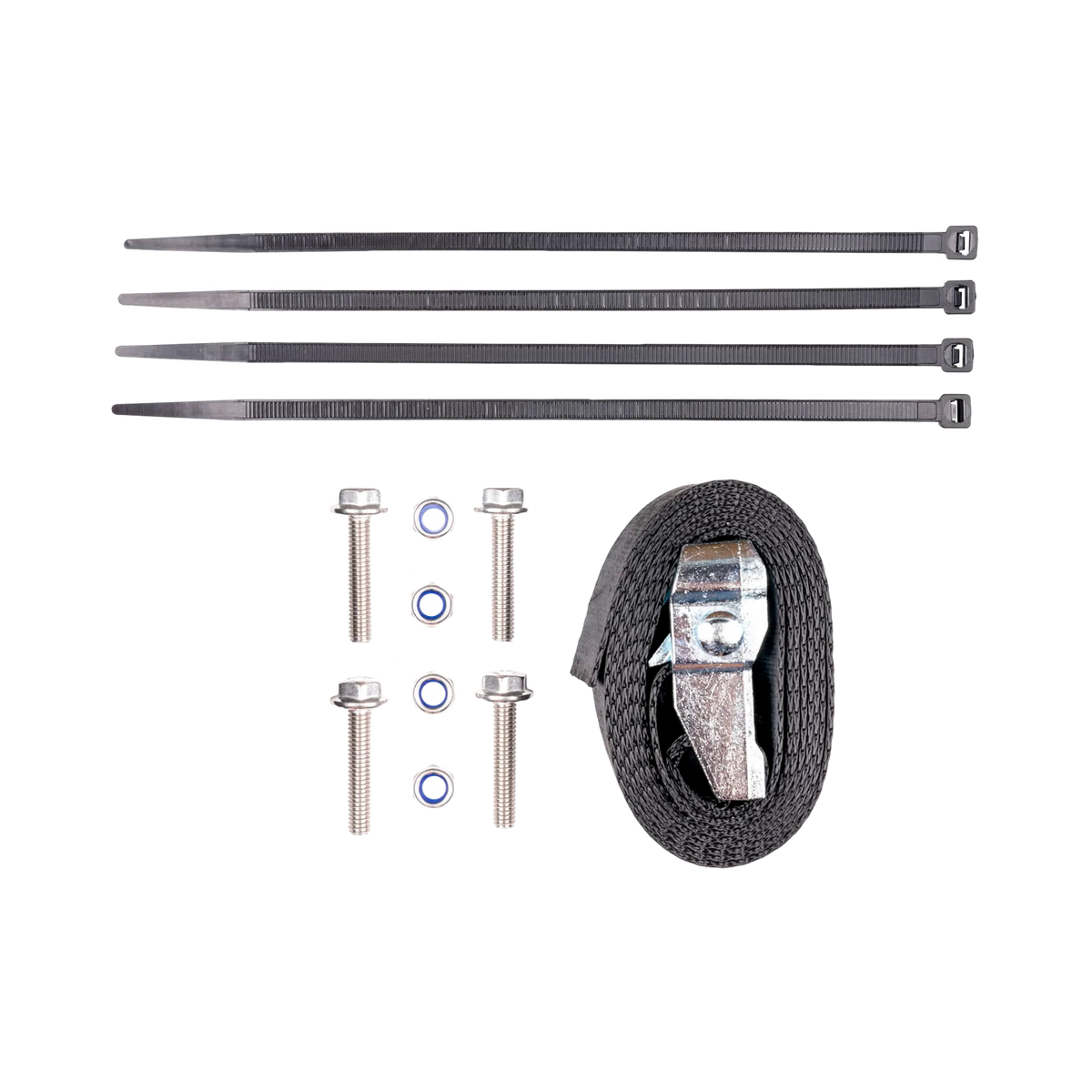

Most universal battery trays include the basic mounting hardware and a hold down strap needed for a standard installation. Vehicle specific trays often come with specialized brackets designed to align with factory mounting points, while universal models provide a simple strap and buckle system to keep the battery in place.

It is wise to check the product description for each tray, as some heavy duty versions might require separate tie down kits or specific bolts depending on if you are mounting to a chassis or a canopy floor. Securing your battery with a solid mechanical connection is a critical step for preventing physical damage during off road travel. This keeps your power source stable and protects your wiring from being pulled or strained on rough tracks.

Explore our range to find the right hardware for your off grid project.
