Hardkorr 50A 12V Dual Battery Voltage Sensitive Relay

Name: Hardkorr 50A 12V Dual Battery Voltage Sensitive Relay
Brand: Hardkorr
SKU: shopify_AU_7648507592876_42628269146284
Price: 38.0 AUD
Availability: InStock

^$38⁰⁰ RRP $39⁰⁰ Save 3%

12 Month Warranty

Fast dispatch

Easy returns

12 Month Warranty

Fast dispatch

Easy returns

Simple dual battery isolator

Charges auxiliary from crank battery

Protects starter battery

Hardkorr 50A 12V Dual Battery Voltage Sensitive Relay

Overview

Product Information

Product Description

Set up your dual battery system easily with Hardkorr's battery box and this Hardkorr Voltage-Sensitive Relay (VSR) Kit. The VSR acts as an isolator, allowing the auxiliary battery (which is inside the box) to charge directly from the crank battery while the alternator is producing at least 13.2V, i.e. when the engine is running. When you turn off the ignition and the battery voltage drops below 12.8V, the VSR automatically cuts the link between the auxiliary and crank battery to prevent it from being over discharged.

NOTE: This product is not suitable for vehicles with a variable-voltage alternator OR lithium batteries. Please check with your vehicle manufacturer prior to purchase if you think your vehicle may be equipped with a variable voltage alternator.

Disclaimers

All product information and images are sourced from manufacturer descriptions and may be updated by the manufacturer without notice to us.

Key Features

Simple dual battery isolator
Charges auxiliary from crank battery
Protects starter battery
Cuts out at 12.8V
Not for smart alternators or lithium

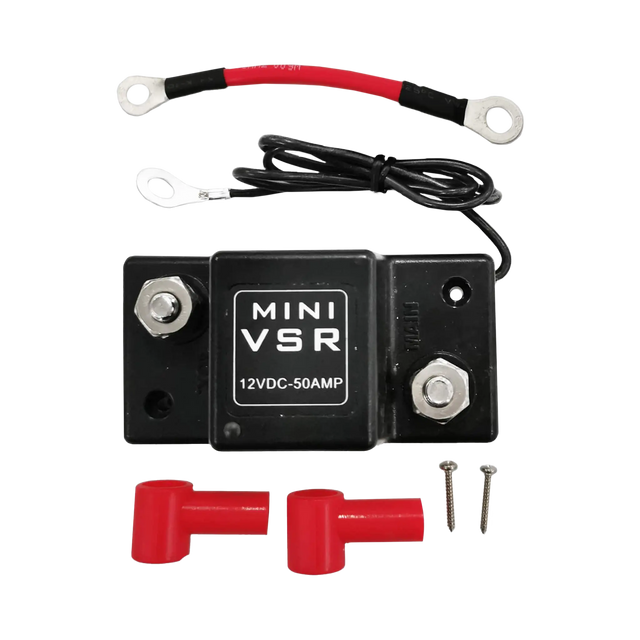

Pack Contents

1 x 50A voltage-sensitive relay
1 x Cable with ring terminal ends
2 x Terminal covers
2 x Mounting screws

Product Weight & Dimensions

0.2kg

Specifications

Hardkorr 50A 12V Dual Battery Voltage Sensitive Relay
Vendor	Hardkorr

FAQs

Frequently Asked Questions

VSR vs DC-DC charger: Which is better for a dual battery system?

A VSR is a simple and cost effective way to charge an auxiliary battery by linking it to the starter battery once the engine is running. While reliable for older vehicles, a VSR does not manage the charge profile or boost voltage, which means it often fails to reach a true 100 percent state of charge in deep cycle batteries.

A DC-DC charger is the superior choice for modern touring because it uses multi stage charging to maximize battery health and lifespan. It also manages the different voltage requirements of modern alternators and varied battery chemistries. While a VSR is a practical entry point for simple setups, travelers seeking maximum performance and battery longevity usually prefer the smart charging capabilities of a DC-DC unit.

Explore our selection of DCDC Chargers for a more advanced setup, or see our complete Dual Battery Systems to find a match for your vehicle.

Can I use a VSR with a smart alternator?

Standard Voltage Sensitive Relays are generally not compatible with modern smart alternators. These alternators are designed to lower their voltage output once the starter battery is full to save fuel and reduce engine load. This drop in voltage often falls below the cut in threshold of the relay, causing the VSR to disconnect your auxiliary battery even while the engine is running.

If the relay stays open, your secondary battery will not receive a charge during your drive, which can leave you without power for your fridge or lights at camp. To solve this issue, most travelers with newer vehicles switch to a charger that can detect an ignition signal or handle lower input voltages. This manages the charging process correctly and makes certain your storage is restored regardless of the alternator behavior.

Check out our selection of DCDC Chargers which are specifically designed to work with smart alternators and provide a full charge to your second battery.

Can you use a Voltage Sensitive Relay with a Lithium (LiFePO4) battery?

Standard VSR units are not suitable for lithium batteries. These batteries require a specific charging profile and precise voltage control that a basic mechanical relay cannot provide.

Lithium cells maintain a higher resting voltage compared to traditional lead acid batteries. This often prevents a VSR from cutting out properly, which can lead to your auxiliary battery draining your starting battery while the vehicle is parked. Using a dedicated charger is a much better way to limit current flow and protect your alternator while providing the correct voltage levels to maintain battery health over thousands of cycles.

Explore our range of Lithium Batteries to find a match for your rig, or see our DCDC Chargers for a compatible charging solution.

Do I need a fuse on both sides of a Voltage Sensitive Relay?

Yes, you must install a fuse on both sides of a Voltage Sensitive Relay. This is a critical safety step because the relay connects two separate power sources, your starter battery and your auxiliary battery.

If the cable connecting these two batteries gets damaged or shorts out against the vehicle chassis, both batteries will immediately dump their full current into the fault. Without a fuse located as close as possible to each battery terminal, this can lead to an electrical fire. Using the correct fuse rating for your cable size protects your wiring and prevents a minor short from becoming a total system failure.
